IntelliLight | Luminous Pillars

Not just lighting. An active response layer.

The world’s first active security illumination system for proactive perimeter security and controlled non-lethal deterrence.

IntelliLight is a pan/tilt-controlled active security illumination system developed for perimeter protection, critical infrastructure, utilities, logistics, campuses and high-risk sites.

Zoomable white LEP for up to 2 km long-range illumination

3 Configurable beam pattern white LED banks

2 km Range Finder

Optional Zoomable Green Laser Dazzler

Range-based response logic

Safety interlocks and controlled operation

Configure / Order IntelliLight

Technical overview

Designed for proactive perimeter security

Long-range response

White LEP illumination supports focused long-range visual intervention and target illumination.

Configurable LED banks

Three configurable LED banks support site-specific white or IR illumination strategies.

Controlled operation

Range gating, zones, dwell-time control and operator workflows support responsible use.

Key features

Active illumination built for security operations

The system is designed to help teams detect, deter, delay and deny threats earlier, before physical damage or escalation.

Long-range white LEP illumination

Three configurable LED banks

White or IR LED bank configuration

Optional green laser dazzler

Integrated range finder

Pan/tilt target tracking

Safety zones and dwell-time control

HTTPS, REST and MQTT integration

Technical highlights

IntelliLight specifications

System and mechanics

Product type	Active security illumination and deterrence system
Mounting	Axis TQ1818-E positioning unit
Pan	360° endless, 0.05°–120°/s
Tilt	−90° to +45° or −45° to +90°, 0.05°–65°/s
Jerk-free movements at low speed	±0.01°/s at 0.05°/s
Preset accuracy	0.05°
Input voltage	24 VDC
Network	Ethernet RJ45
Approx. weight	7.4 kg
Color	White, NCS S 1002-B

Light and optical configuration

Main light	White LEP

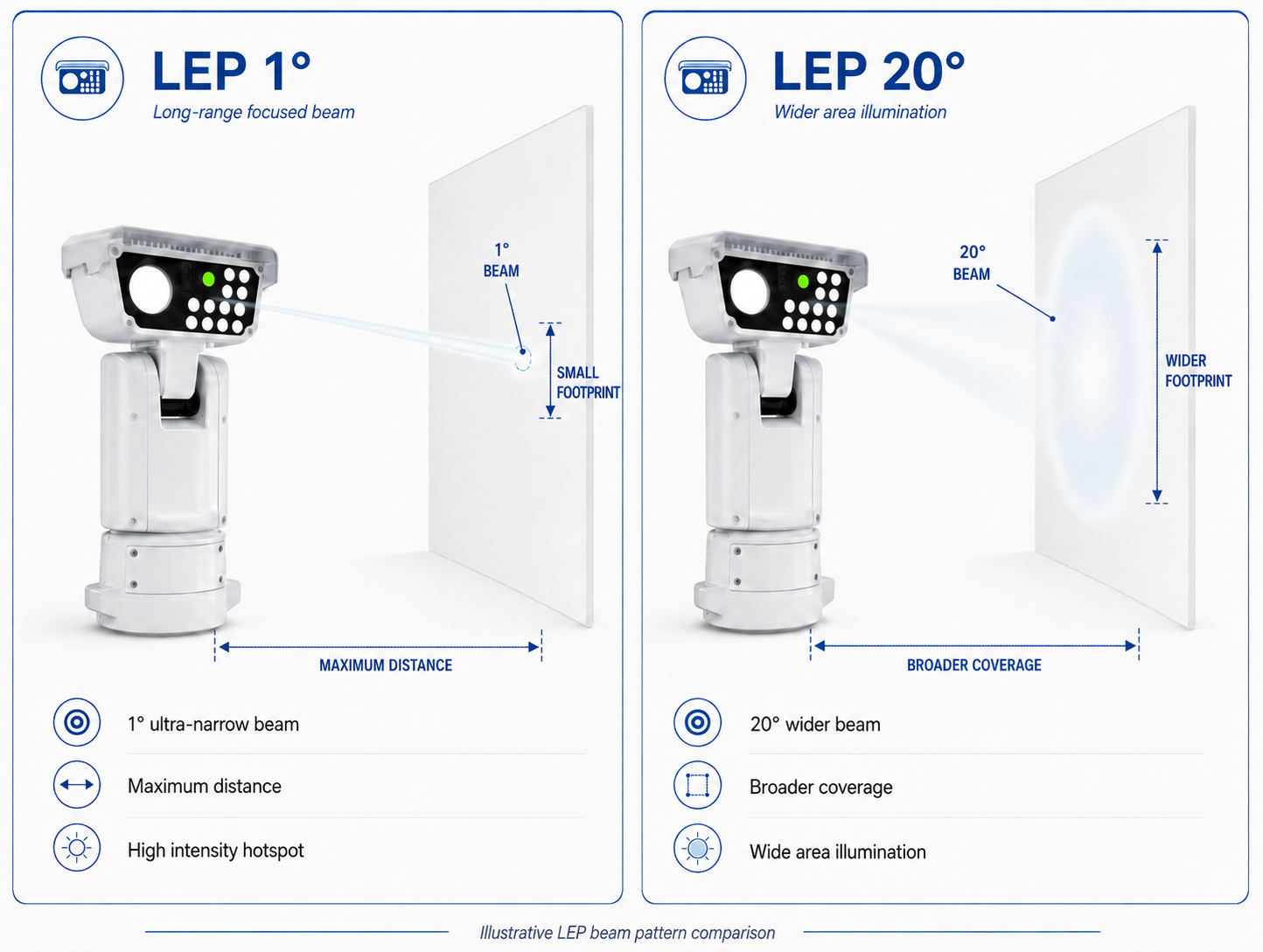

LEP beam	Variable beam angle: 1°–20°, motorized

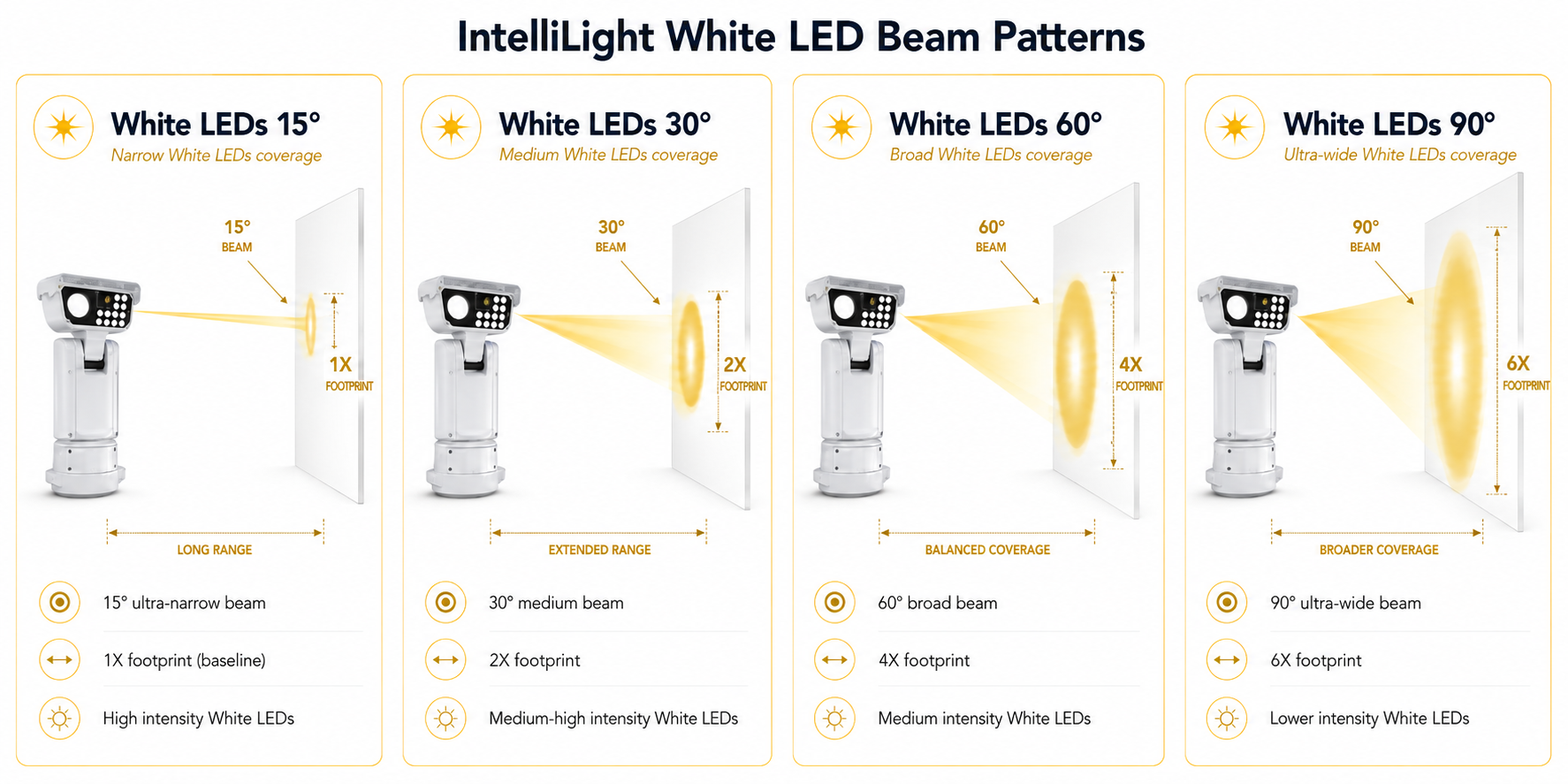

LED banks	3 banks, 4 LEDs per bank

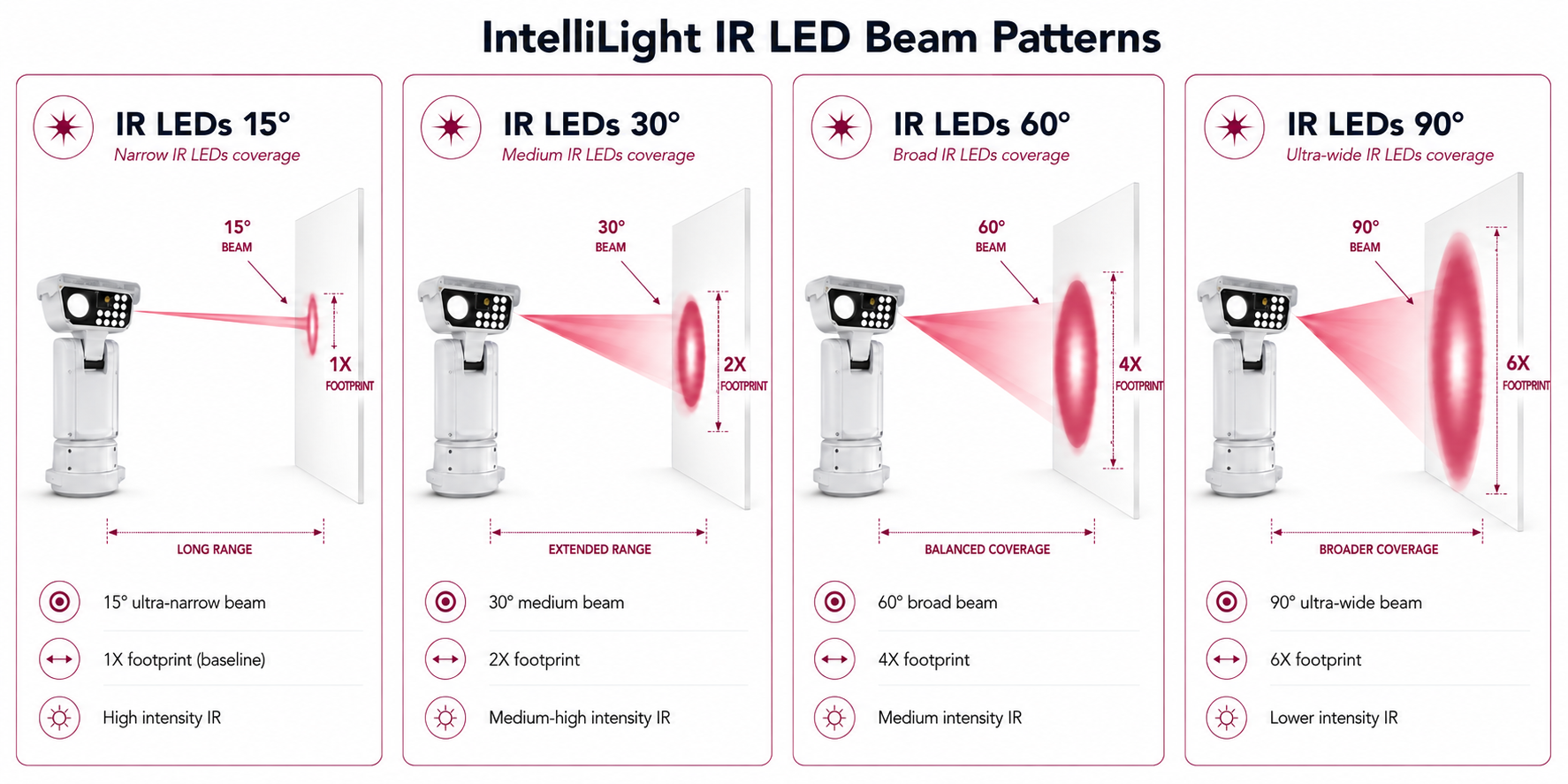

LED options	White; IR configuration planned for availability in Q1–Q2 2027.
LED lens options	15°, 30°, 60°, 90°, 120°

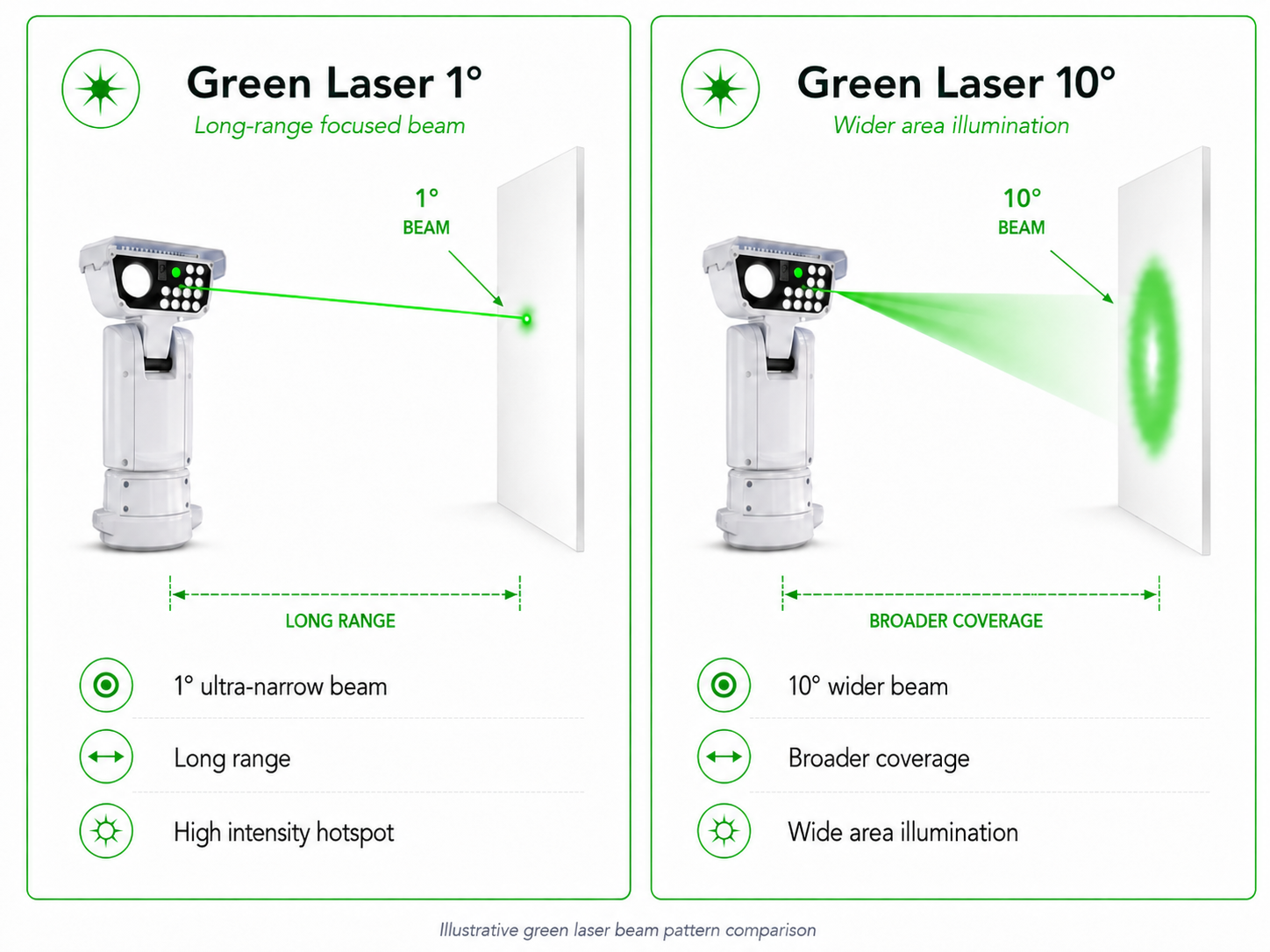

Optional laser	Green laser dazzler
Laser beam	Variable beam angle: 1°–10°, motorized
Range finder	Integrated, up to approx. 2 km

Interfaces and software

APIs	HTTPS, REST, MQTT
Events	HTTP GET event integration
VMS / camera support	Axis, Hanwha, IQSight / formerly Bosch, Milestone, Genetec and IPFusion, project-dependent integrations
Supported workflows	Camera, radar, VMS and security workflow systems
Local interface	Internal webserver for setup and diagnostics
External inputs	ONVIF, VAPIX, ACAP, SUNAPI, ASTERIX input where configured

Environmental

Casing	Powder coated aluminum housing
Environmental rating	IP66-, NEMA 4X- and IK10-rated powder coated aluminum, excluding front window. Front glass: IK08.
Operating temperature	−40 °C to 60 °C (−40 °F to 140 °F)
Humidity	5–95% non-condensing
Deployment type	Outdoor perimeter, critical infrastructure and high-value sites
Safety design	Range gating, zones, dwell-time control, interlocks and audit logging

Controller platform options

Commercial and industrial controller paths

	Cost-optimized IoT-class controller platform	Industrial controller platform
Recommended use	Standard commercial deployments where price sensitivity is important and NDAA requirements are not strict.	Critical infrastructure, government-related, federally funded or NDAA-sensitive projects.
Key benefits	Cost-optimized solution IoT-class components Faster time to deploy Suitable for commercial use	Supply-chain traceability Lifecycle control Cybersecurity documentation Procurement confidence Lower procurement risk
Compliance focus	Commercial performance and cost efficiency.	Designed for projects where supply-chain assurance, documentation and procurement review are important.

System functions

Functions, software and interfaces

How IntelliLight works

Radar, camera analytics or security platform detects an object.
The event is validated by the control workflow.
Target position is calculated.
IntelliLight is aimed at the target.
Safety rules are checked.
Approved light action is activated.
Output is adjusted by configuration and distance.
The system logs the event and resulting action.

Supported functions

Target illumination
Target tracking
Radar-driven positioning
Camera-assisted positioning
Multi-sensor triangulation
Joy / No-Joy zones
Range gating
Event-based light actions
Manual operator override
Dwell-time control
Automated escalation rules

Software & interfaces

Local web interface
HTTPS API
REST API
MQTT messaging
HTTP GET event integration
ONVIF support
Axis VAPIX
Axis ACAP
Hanwha SUNAPI
ASTERIX input
Internal webserver for setup and diagnostics
Edge security: signed OS, brute force delay protection, digest authentication and cryptographic module support

Safety functions

Controlled response architecture

Range gating	Prevents activation outside configured distance limits.
Joy / No-Joy zones	Defines allowed and prohibited activation zones.
Dwell-time limits	Controls exposure duration.
Aircraft interlock	Supports ADS-B / aircraft-related inhibit logic.
Fail-closed design	Inhibits active output if safety status is unknown.
Hardware interlocks	Physical-level safety protection.
Software interlocks	Rule-based activation control.
Operator permissions	Restricts access to sensitive functions.
Audit logging	Records system actions and events.

Cybersecurity & network protocols

Built for controlled networked security environments

Cybersecurity paragraph

IntelliLight is designed for edge security workflows where active response must be protected against unauthorized access and misuse. The software platform supports signed OS concepts, brute force delay protection, digest authentication and cryptographic module support. Project configurations can combine local web access, API authentication, network segmentation, operator permissions and audit logging to reduce operational risk.
